GM Series Metal Lock Nut

GM Series Metal Lock Nut

Category: Explosion-proof Grand Head

Product details

Product Overview

Material: brass nickel plated, O-ring is silicone rubber

Protection level: IP68

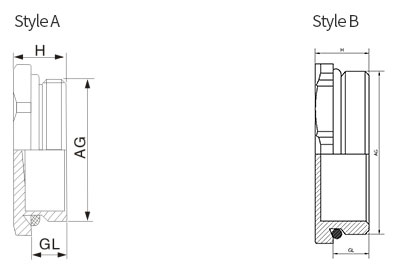

Structure Chart

Technical Parameter

DPM.C-M Metric Thread

Artice no.	Thread Dimension(mm)	Thread AG(mm)	GL(mm)	Wrench size(mm)	H(mm)	Packet units
DPM.C-M12	M12*1.5	12	5	14	8	100
DPM.C-M16	M16*1.5	16	7	18	9	100
DPM.C-M18	M18*1.5	18	7	20	9	100
DPM.C-M20	M20*1.5	20	7	22	10	100
DPM.C-M22	M22*1.5	22	7	24	10	100
DPM.C-M24	M24*1.5	24	7	27	10	100
DPM.C-M25	M25*1.5	25	7	28	10	50
DPM.C-M27	M27*2.0	27	8	30	11	50
DPM.C-M30	M30*2.0	30	8	34	11	20
DPM.C-M32	M32*1.5	32	8	36	12	20
DPM.C-M33	M33*2.0	33	8	36	12	20
DPM.C-M36	M36*2.0	36	8	40	12	20
DPM.C-M40	M40*1.5	40	9	45	15	10
DPM.C-M48	M48*2.0	48	9	52	15	10
DPM.C-M50	M50*1.5	50	9	55	15	10
DPM.C-M56	M56*2.0	56	10	60	16	10
DPM.C-M63	M63*1.5	63	10	70	16	10

DPM.C-P PG Thread

Artice no.	Thread Dimension(mm)	Thread AG(mm)	GL(mm)	Wrench size(mm)	H(mm)	Packet units
DPM.C-PG7	PG7	12.5	5	14	8	100
DPM.C-PG9	PG9	15.2	7	17	10	100
DPM.C-PG11	PG11	18.6	7	20	10	100
DPM.C-PG13.5	PG13.5	20.4	7	22	10	100
DPM.C-PG16	PG16	22.5	7	24	10	100
DPM.C-PG21	PG21	28.3	7	30	11	50
DPM.C-PG29	PG29	37	8	40	12	20
DPM.C-PG36	PG36	47	9	50	15	10
DPM.C-PG42	PG42	54	9	60	16	10
DPM.C-PG48	PG48	59.3	10	65	16	10

DPM.C-G Thread

Artice no.	Thread Dimension(mm)	Thread AG(mm)	GL(mm)	Wrench size(mm)	H(mm)	Packet units
DPM.C-G3/8	G3/8＂	16.662	8	20	11.5	100
DPM.C-G1/2	G1/2＂	20.995	8	24	11.5	100
DPM.C-G3/4	G3/4＂	26.441	8	30	11.5	50
DPM.C-G1	G1＂	33.249	9	40	13	50
DPM.C-G1 1/4	G1 1/4＂	41.910	10	50	14.5	25
DPM.C-G1 1/2	G1 1/2＂	47.803	10	52	15	15
DPM.C-G2	G2＂	59.614	11	65	16	15
DPM.C-G2 1/2	G2 1/2＂	75.184	11	80	17	10
DPM.C-G3	G3＂	87.884	11	95	18.5	10

DPM.C-NPT Thread

Artice no.	Thread Dimension(mm)	Thread AG(mm)	GL(mm)	Wrench size(mm)	H(mm)	Packet units
DPM.C-NPT3/8	NPT3/8＂	17.055	11	20	14.5	100
DPM.C-NPT1/2	NPT1/2＂	21.223	13	24	16.4	100
DPM.C-NPT3/4	NPT3/4＂	26.568	13	30	17	50
DPM.C-NPT1	NPT1＂	33.228	16	36	20	50
DPM.C-NPT1 1/4	NPT1 1/4＂	41.988	16	50	21	25
DPM.C-NPT1 1/2	NPT1 1/2＂	48.054	18	52	23	15
DPM.C-NPT2	NPT2＂	60.092	18	65	24	15
DPM.C-NPT2 1/2	NPT2 1/2＂	72.699	22	75	28	10
DPM.C-NPT3	NPT3＂	88.608	22	95	28	10
